LOL-DOW-1312

Micro Recessed Handrail Downlight

The LOL-DOW-1312 can be used on either flat or curved (43 & 48 dia) handrails. The screw in fixing method and concealed wiring makes this luminaire resistant to vandalism and as it sits discreetly on the underside of the handrail the glare rating is excellent for public spaces (IK10). The different options are Flat Face Symmetrical, Curved Face Asymmetrical, Curved Face Symmetrical, 60° Beam Symmetrical, 90° Beam Symmetrical & Assymmetrical and 120° Beam Symmetrical

Reduced GlareReduced Glare Low ProfileLow Profile IP 68 Joining Kit IP66

Dimensions

  • 15.7C x 15H

    15.7Ø x 15H

Power Input

    Curved Face Asymmetrical, 500mA

Lamp details

  • Lamp Curved Face Symmetrical, LED Module

Power usage

    1.5W, 60° Beam Symmetrical

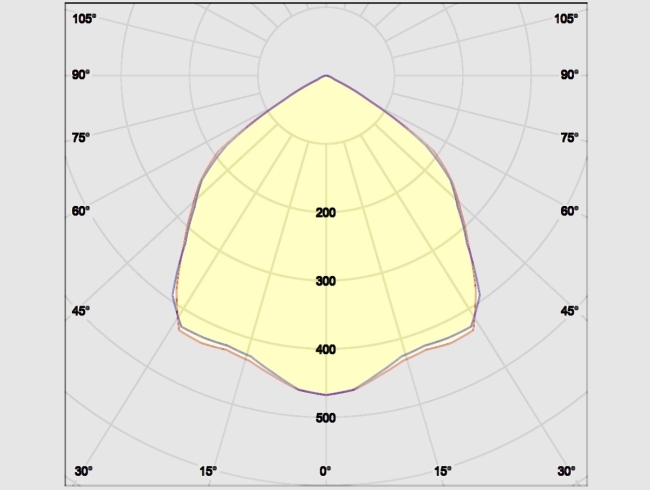

Beam Angles

    Colour Temperature

      LED Module, 2700k

    Lumen

      1.5W, 108-120lm

    CRI

      IP66, 80+

    Finish type

    • YES
    • Stainless Steel

    Accessories

    80+

    Important notes

    *Intended for installation in a metal handrail or housing**Other colour temperatures are available ***M16 threading drill jig equipment is provided for on site installation - deposit required

    General Notes & Installation

    Note: All dimensions and other specifications can change without notice.

    Please contact Light on Landscape to confirm the availability and current specifications of this luminaire.

    Mounting

    Recessed in threaded hole
